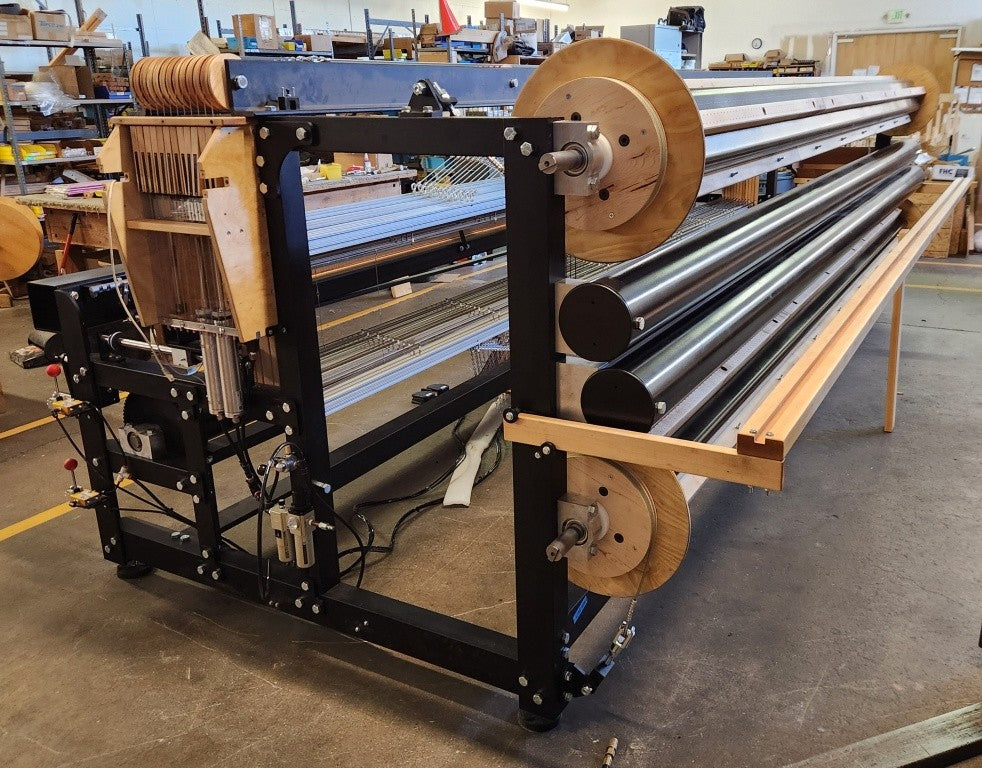

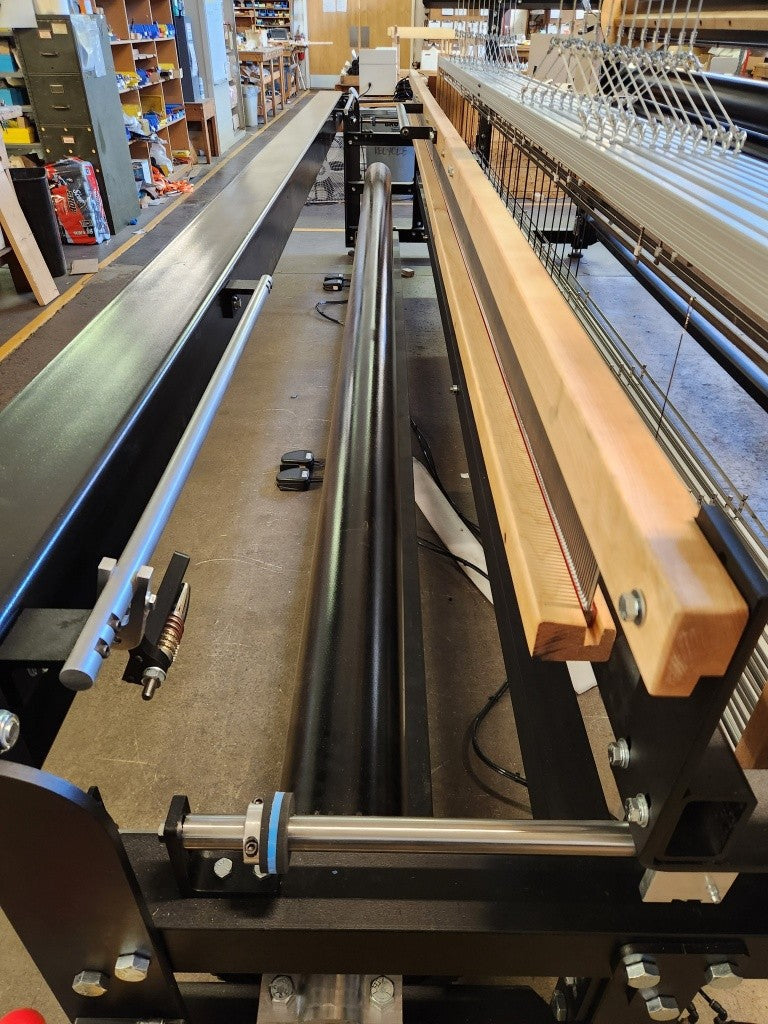

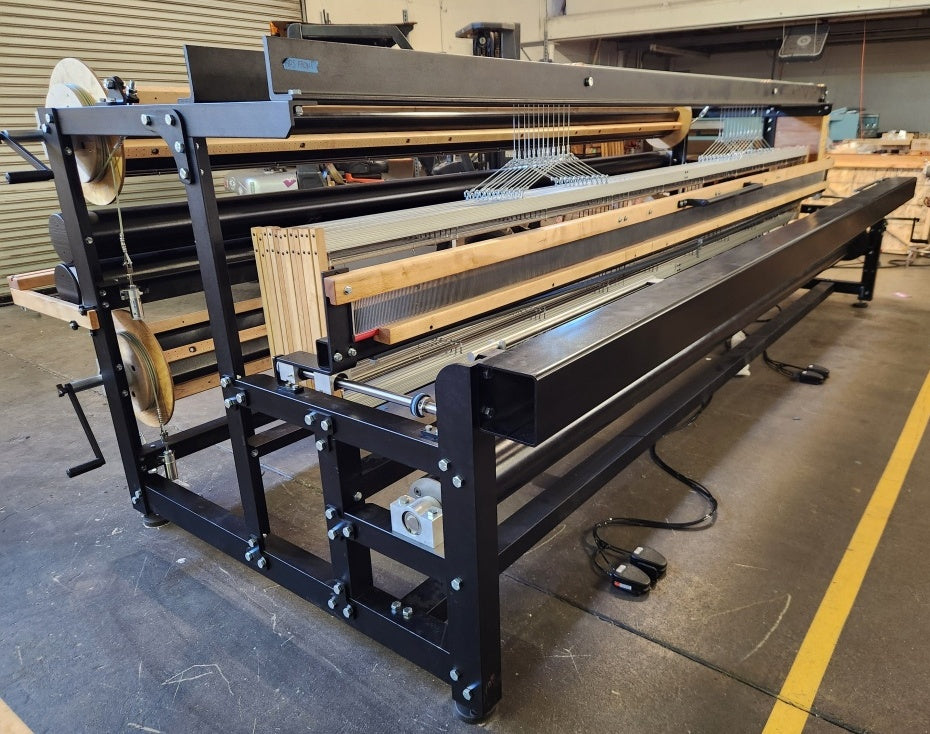

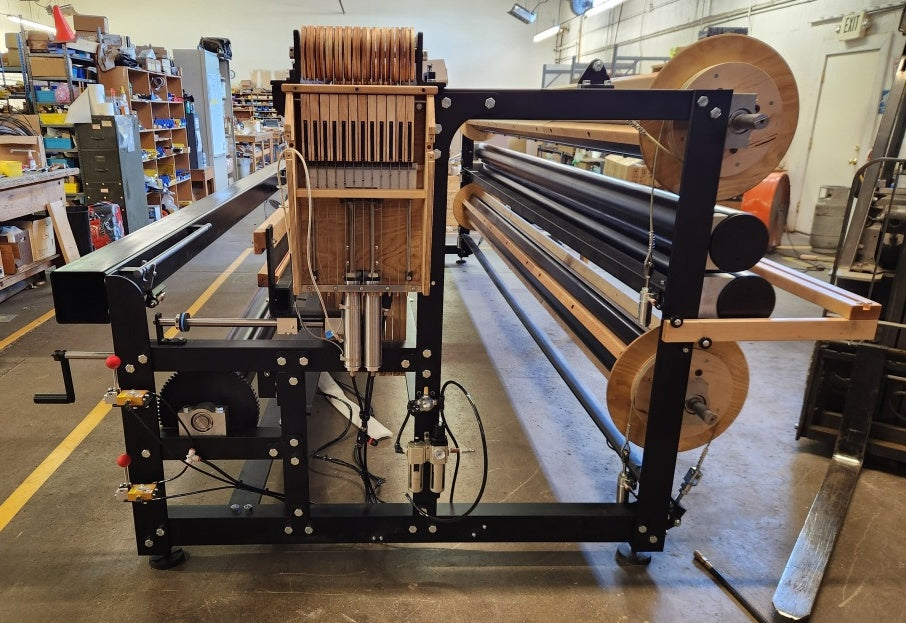

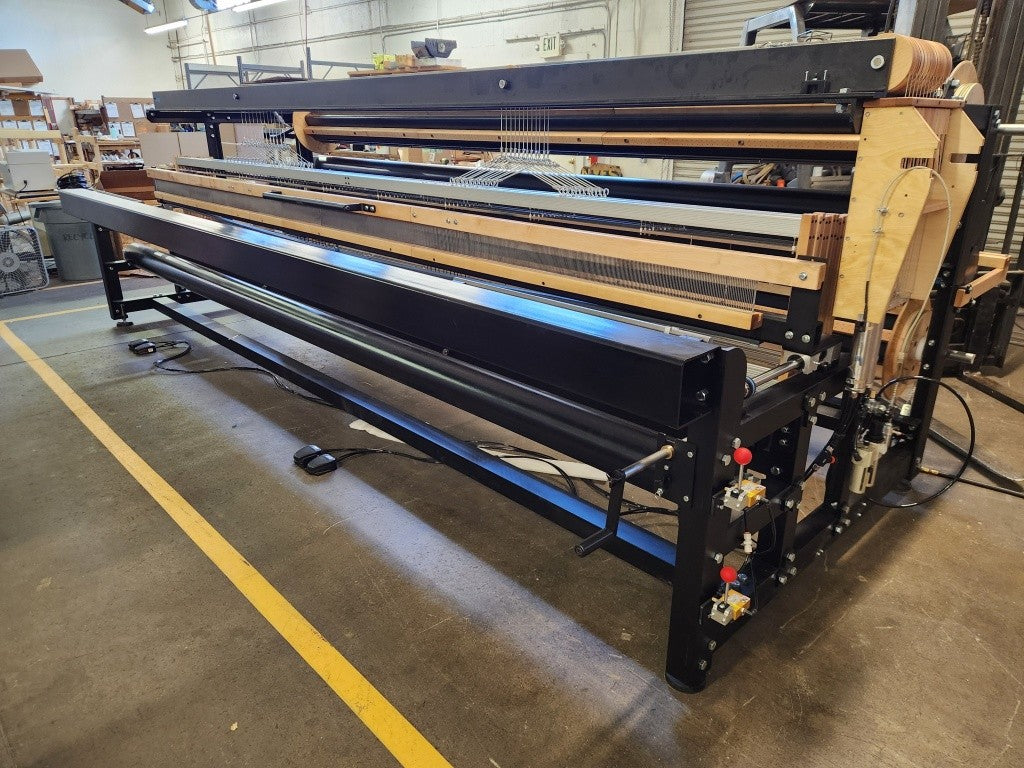

The AVL Professional Dobby Rug Loom is the ultimate heavy-duty loom that boasts up to 16 harnesses and expansive weaving width of 4ft - 20 ft (1.2m - 6m). The versatility and strength of this loom makes it the go-to machine for professional rug weavers around the globe.
Made in Chico, California, USA
Features
Standard Features:
- Air-Powered Warp Tension
- Air-Powered shed opening
- Dobby System (mechanical or Compu-Dobby), 8, 12, 16 shafts
- Sliding Beater
- Metal Heddles
- Choice of one or two 1-yard Section or Standard Beam
- Wood and Steel construction (All-steel over 12ft looms)
- Stainless Steel Reed
- Illustrated Instruction Manual
- Tool Holder
- AVL two-year warranty
Additional Features:
- Air-Powered Flyshuttle (1, 2, or 4-box options)
- Automatic Cloth Advance
- Automatic Warp Letoff
Note: 4-6’ (1.2-1.8m) looms have all hardwood frames, 8’ (2.4m) looms use powder coated steel for all crossmembers, and 10’ (3m) looms and up are mostly powder coated steel.
Specifications
Specifications:
Rug Loom Specifications |
||||||
|
4’ (1.2m) |
6’ (1.8m) |
8’ (2.4m) |
10’ (3m) |
12’ (3.65m) |
15’ (4.57m) |
Height |
75” (1.9m) |
75” (1.9m) |
75” (1.9m) |
75” (1.9m) |
75” (1.9m) |
64” (1.63m)* |
Overall Width |
66” (1.67m) |
90” (2.29m) |
114” (2.9m) |
138” (3.5m) |
161” (4.1m) |
209” (5.3m) |
Front to Back |
84” (2.15m) |
84” (2.15m) |
84” (2.15m) |
84” (2.15m) |
84” (2.15m) |
66” (1.68m)* |
No. of Heddles |
400 |
600 |
800 |
1,000 |
1,200 |
1,500 |
Weight |
900 lbs/409 kgs |
1300 lbs/591 kgs |
1600 lbs/727 kgs |
1900 lbs/864 kgs |
2300 lbs/1045 kgs |
4300 lbs/1950 kgs |
*Newly redesigned 15 ft. frame is shorter and less deep allowing the loom to fit in tighter spaces. The10 ft, 12 ft & 20 ft frame designs will be updated to the new design in the near future.
Additional Links:
Recommended Air Dryers for Air Compressors
To complete your rug loom order, you must choose one or two Rug Loom Warp Beams.
